200A Compact Synergic MIG/MMA/TIG Welding Machine – EZIMIG215C
Original price was: $1,949.25.$194.93Current price is: $194.93.

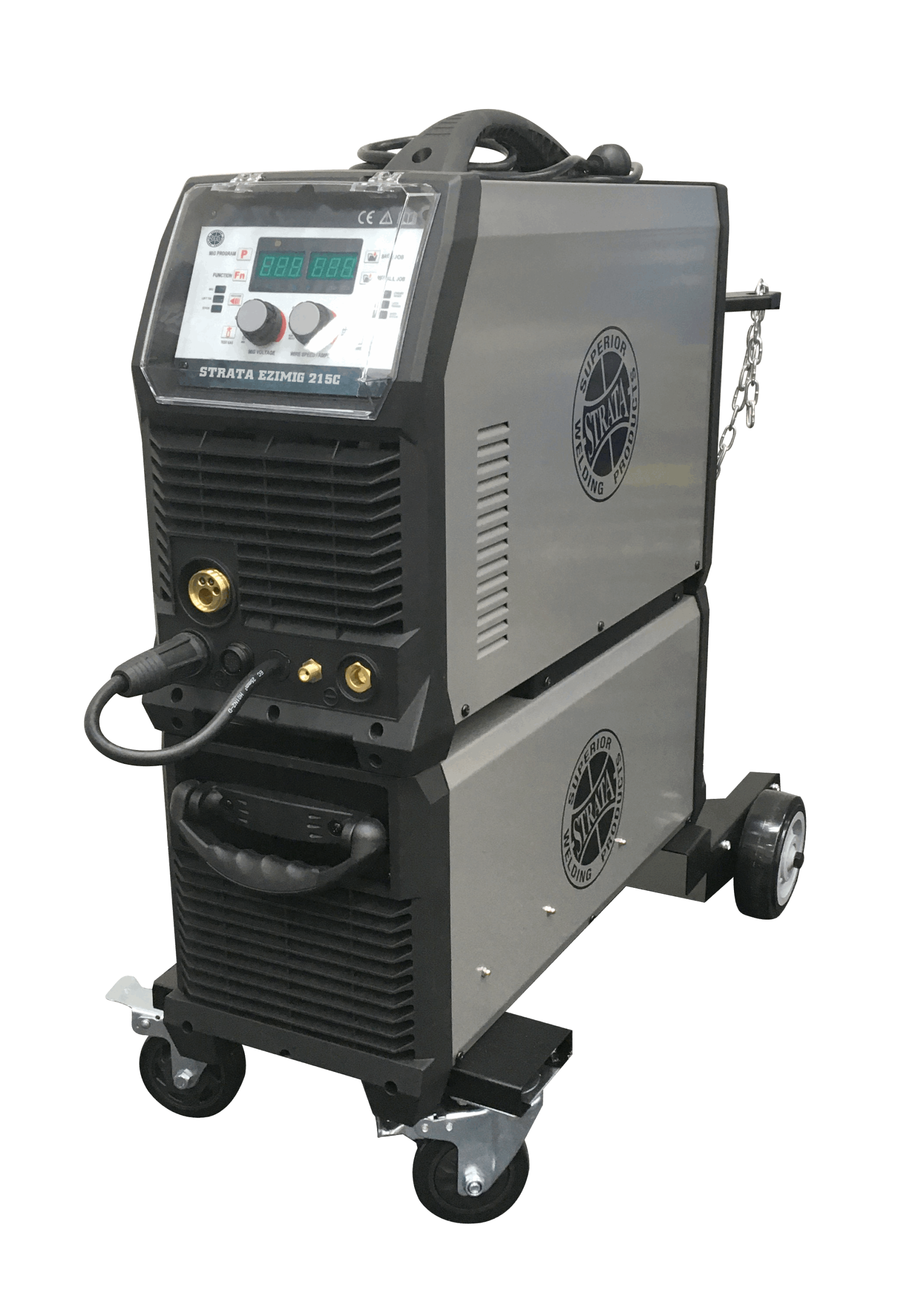

Compact 200A Inverter MIG / MMA / Tig Welder, EZIMIG215C
Ultra compact and easy to the EZIMIG 215C multi-process welder is a must have for today’s industrial professionals.
With the latest IGBT inverter technology, extreme stress testing to 440V and insulation class IP23, this machine is built to last.
Features:
IGBT inverter technology for smooth & stable welding output and increased reliability.
Aluminum chassis.
Professional wire feeder provides a smooth, consistent wire feed.
MIG waveform (inductance) control of the arc for smooth welding results.
Industrial IP23 casing with front panel protection resists damage, moisture and corrosion.
Lightweight & compact design, ideal for portable applications.
MIG spot welding function with 2T/4T trigger control.
Accurate pre-setting and feedback of welding parameters & output with dual digital display meters.
Great control MIG welding with adjustable pre flow, post flow, burn back and soft start settings.
Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety.
Designed to work with generator power supply with protection from power surges.
Reversible polarity for gas & gasless MIG welding.
Quick connect inlet gas fitting.
Accessories Include:
3m earth lead with heavy duty earth clamp
4m MMA lead with heavy duty twist lock electrode holder
Binzel Style MT250-40ER MIG torch
2 stage flowmeter, argon gas regulator and adapter
4m gas hose, gas inlet quick connector, hose clamps
MIG ‘V’ Groove drive rollers (0.6 – 0.8mm & 0.9 – 1.0mm)
Optional Integrated Trolley Option:
Handy sized trolley, heavy duty wheels making it super portable.
Multiple enclosed compartments for safe storage.
Model: EZIMIG215C
Specifications:
| Input Power Supply: | 230V AC 15A 50/60Hz |
| Input Power Tolerance: | 230±10%V |
| Maximum Input Current: | 42A |
| Generator Capacity: | 10KVA |
| Mig Output Voltage: | 16V – 27V |
| Mig Output Current: | 40 – 200A |
| MIG Duty Cycle: | 200A@25% 155A@60% 120A@100% |
| Wire Feeding Speed: | 1.5 – 16.5m/min |
| MMA O/C Voltage: | 58V |
| MMA Current Output: | 10A – 160A |
| MMA/TIG Duty Cycle: | 160A@15% 140A@60% 110A@100% |
| Insulation Class: | IP23 |
| Power Efficiency: | 85% |
| Power Factor: | 0.65 |
| Standards: | EN60974 – 1:2012 |
| MIG Drive Rollers Available: |
V Groove: 0.6 / 0.8 / 0.9 / 1.0mm Knurled: 0.8 / 0.9 / 1.0mm U Groove: 0.8 / 1.0mm |
| Mig Wire Spool Size: | D200mm / D300mm 15KG |
| MMA Rod Size: | 1.6-5.0mm |
| Dimensions: | 550 x 215 x 415mm |
| Weight: | 20.5kgs |
Click Here For More Information
All Prices Include GST
