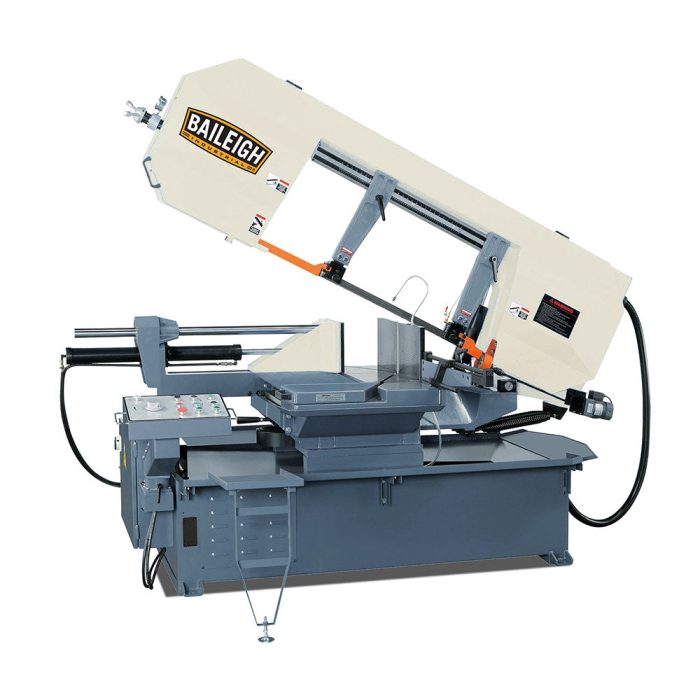

Baileigh 1001389 BS-24SA-DM 220V Semi Auto Dual Mitering Horizontal Band Saw

Original price was: $34,699.99.Current price is: $3,470.00.

Features
  • Cuts 18” round or 15” x 24” rectangle at 90°.
  • Swivel head miters 60° left and right.
  • Accepts a standard 1.5” blade (included). This width makes the cutting fast and accurate.
  • 106 to 317 fpm variable blade speed, allowing for infinite blade speed adjustments.
  • Adjustable speed lets you fine-tune for different materials, like mild steel, bronze, or aluminum.
  • Runs on 220-volt 3-phase power for reliability.
  • Sturdy cast iron vise and bow prevent wobbling and keep cuts accurate.
  • Semi-automatic system with hydraulic downfeed speeds up production. You just put the material in place and start the controls. The saw will take care of the rest.
  • Industrial-grade hydraulics open and close the quick-lock vise.
  • Adjustable hydraulic descent pressure helps you achieve faster cut times and longer blade life.
  • You can change the return position of the saw head for faster cycle times between cuts on smaller dimensioned pieces.
  • Patented blade tension device allows you to set the right tension quickly and easily. Line up the black arrow with the green liquid-filled gauge.
  • Electro-welded steel frame stabilizes the machine, reducing vibrations for many years of accurate cuts.
  • Flood coolant system washes away metal chips and helps prolong blade life.
  • We typically keep all replacement parts in stock for fast deliveries.
What’s in The Box
  • BS-24SA-DM – Semi-Automatic Dual Mitering Horizontal Band Saw
  • Owner’s Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU BS-24SA-DM
Power 220 Volt Three Phase
Return Hydraulic
Miter Adjustment Dual Miter Swivel Head
Miter Angle 0 – 60° Left and Right
Motor 5 hp
Capacity Round 90° 18.1″
Capacity Square 90° 18.1″
Capacity Rectangle 90° 17″ x 24″
Capacity Round 45° 17.5″
Capacity Round 90°/ 45° / 60° 18″ x 15.7″ x 11″
Table Height 31.5″
Blade Guide Carbide x Roller
Blade Size 1.5″ x .051″ x 209.84″
Blade Speed (fpm) 106 – 317
Descent Control Pressure Assist Hydraulic
Drive Belt x Pulley
Dimensions (Inches) 111 x 45 x 74
Weight 3550 lbs
