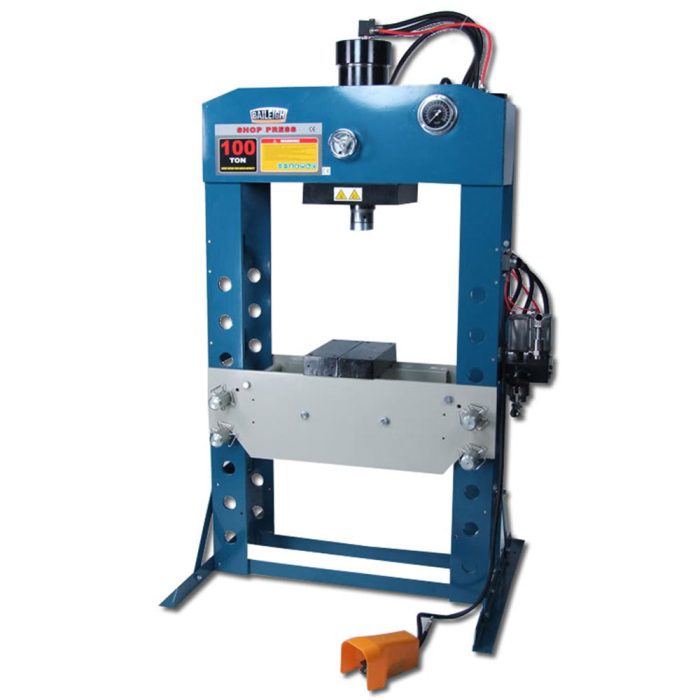

Baileigh 1004759 HSP-100A 100 Ton Air Operated H-Frame Shop Press
Original price was: $9,799.99.$980.00Current price is: $980.00.
Features
- 31” working width.
- 11.8″ stroke length controlled using foot pedal.
- 6.5” hydraulic cylinder moves left and right, helpful when you’re making off-center parts.
- Hand-operated lever gives you the option for more delicate manual control over the machine.
- Industrial-grade hydraulic components cleanly deliver force to the project, providing years of trouble free use.
- Includes a set of V-blocks.
- Fully-welded plate steel frame maintains rigidity for less flex and more accurate pressing.
- Baileigh covers this 100 ton hydraulic press with a 1-year warranty as well as lifetime technical support by phone from our team of experienced customer service reps.
- Typically in stock for fast shipments.
What’s in The Box
- HSP-100A – Shop Press
- Owner’s Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | HSP-100A |
| Power | Pneumatic / Manual |
| Piston Head Diameter | 3.5″ |
| Movable Cylinder | Yes |
| Working Width | 31″ |
| Maximum Capacity | 100 tons |
| Cylinder Stroke | 11.8″ |
| Cylinder Diameter | 6.5″ |
| Distance From Table To Ram | Min. 4.45″ – Max. 32.01″ |
| Shipping Dimensions (Inches) | 81 x 46 x 20 |
| Dimensions L x W x H | 81″ x 45″ x 21″ |
| Weight | 1700 lbs |
