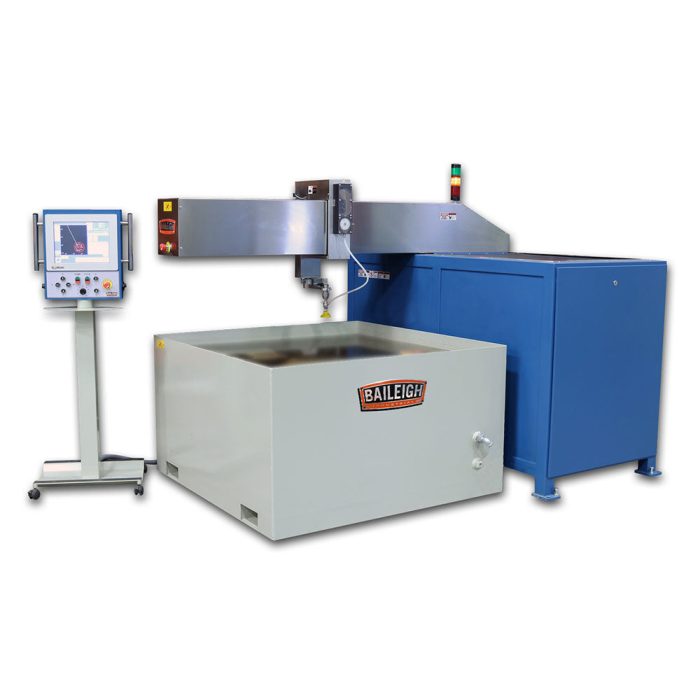

Baileigh 1019139 WJ-4X4CNC 48″ x 48″ 480V 3PH CNC Water Jet
Original price was: $166,999.99.$16,700.00Current price is: $16,700.00.
Features
- The WJ-4x4CNC water jet from Baileigh Industrial is a great value for anyone looking to get into water jet cutting.
- This great machine has the ability to cut just about any material with precision.
- This includes glass, granite, ceramic, plastic, foam, mild steel, stainless steel, titanium, aluminum, and copper in its 48” x 48” table.
- The design is a cantilever design that allows for much easier material loading and unloading.
- This design also offers smoother action on the axis with exclusion of moving parts.
- All axis ride on precision balls screws with square slide ways.
- All slide ways are covered and protected from water for long life.
- The frame of the WJ-4x4CNC is laser cut and interlocked, then welded for strenght, rigidity, and accuracy.
What’s in The Box
- WJ-4x4CNC – Water Jet
- Owner’s Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | WJ-4x4CNC |
| Power | 460V / 3-phase 60amp |
| Motor KW | 30kw |
| Working Table Size | 48″ x 48″ |
| Working Table Travel (X/Y) | 48″/48″ |
| Table Size | 59″ x 59″ |
| Filter Type | 2 Stage/2 Filter, 10 Micron & 1 Micron |
| Number of Filters | 2 |
| Supported File Formats | DXF |
| Repeatability Accuracy | ± .001″ |
| Production Pressure | 56,000 psi |
| Max. Flow Rate | 7.92 gallons per minute |
| Orifice Size | .014″ |
| Travel Speed | 40 fpm (26 fpm Cutting) Maximum |
| CNC System | Windows Based |
| Cutting Accuracy | ±.001″ |
| Inlet Pressure | 30 psi |
| Motor | 40 hp |
| X Axis Travel | 48″ |
| Y Axis Travel | 48″ |
| Z Axis Travel | 6.75″ |
| Hopper Capacity | 250 lbs |
| Software | BobCAD Cam |
| Shipping Dimensions (Inches) | 107x49x75 & 64x64x71 |
| Weight | 4000 lbs |
