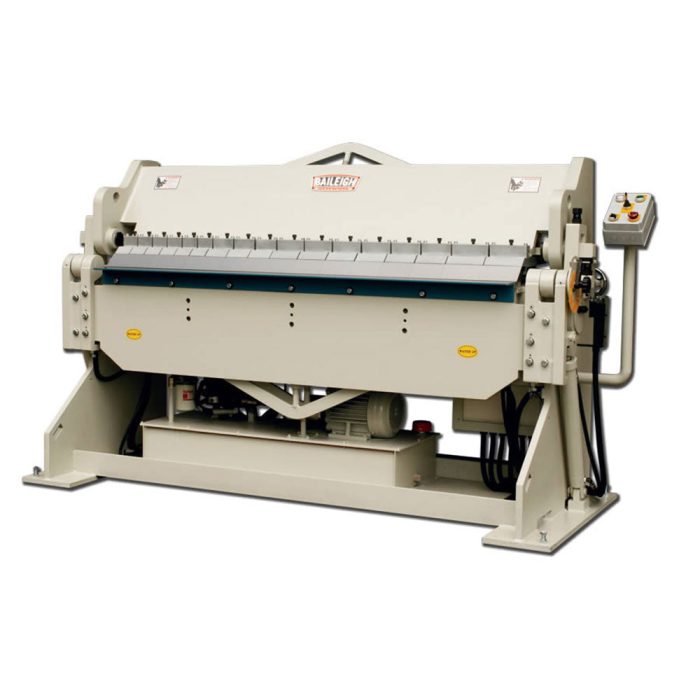

Baileigh 1021002 BB-7210H 220V 3PH Hydraulic Box / Pan Brake

Features

• Maximum bend angle of 135°.
• 1” beam adjustment.
• Box and pan brake made with top-quality industrial-grade hydraulics for reliability over many years of use.
• You can operate the hydraulic system in manual or semi-automatic mode to lift the leaf.
• Adjustable bend auto-stop makes production runs more efficient and ensures repeatability.
• 5 hp motor controls all hydraulic functions and runs on 220-volt 3-phase power.
• Hydraulic motor attached to a cam lifts and clamps the beam to deliver the extreme pressure required to bend 10 gauge mild steel.
• Includes 17 hardened 3-piece fingers (6 of 3″, 3 of 4″, 6 of 5″, and 2 of 6″) to adjust for just about any size box or pan.
• 6” maximum box depth.
• Removable bending apron lets you get closer between bends.
• Fully-welded top beam and bending leaf, stabilized with solid steel support rods, keep deflection and twisting to a minimum when you’re bending at full capacity.
• Baileigh covers this 10 gauge metal brake 1-year parts warranty.

What’s in The Box

• BB-7210H – hydraulic Box and Pan Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications
