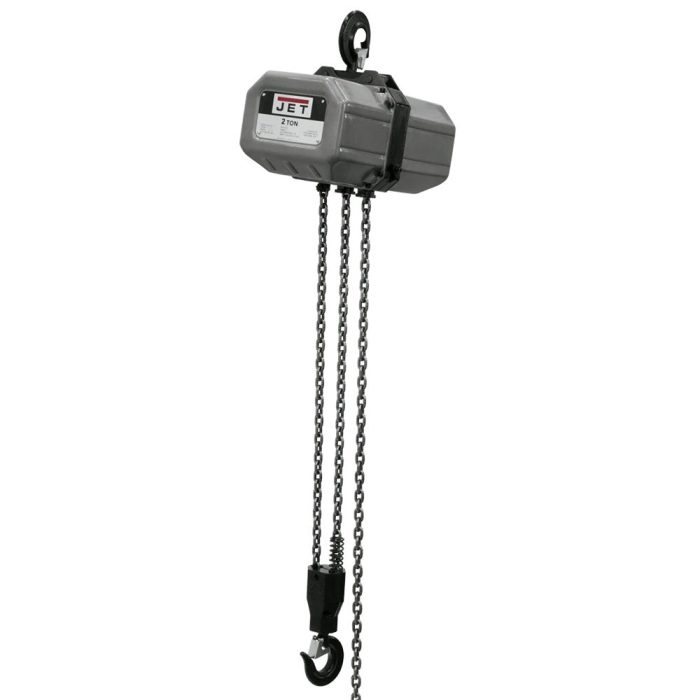

JET 2SS-3C-15 230V/460V 2 Ton 3 Phase Electric Chain Hoist w/ 15′ Lift

Original price was: $4,149.00.Current price is: $414.90.

Safety
Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity
Reverse Phase Relay- A safety switch that protects the hoist from incorrect wiring of the power supply
DC Electro-Magnetic Brake- An industry-proven safety feature that secures the load even if power is interrupted to the hoist
Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
Durability
Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
Control Pendant- 24-volt push-button controller with cable strain relief system for durability and reliability in industrial and commercial settings
All Steel Construction- Fully enclosed, all steel plate construction with a durable powder coat finish keeps out moisture, dust, and debris lengthening the life of the hoist
Performance
Three Phase:
Duty Rating- H4
Duty Cycle- 30 percent
Standards
This product complies with ANSI / ASME B30.16 and HST-1 standards
Certification- Load tested to 125 percent of capacity with certificate
Controls- NEMA 4X compliant push button control pendants
JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are NOT rated or designed for outdoor use or wet environments

SKU	2SS-3C-15
Brand	Jet
Volts	230/460
Horsepower	2-1/7
Phase	3
Lift	15
Load Capacity	2 tons
Number of Falls	2
Duty Cycle Rating	H4
Duty Cycle	30 percent
Max On Time (Min/Hr)	18
Max Number of Starts (Per hr)	180
Lifting Speed (FPM)	12
Headroom	28-1/8 in
Load Chain Dimensions (mm)	8 x 24
Weight for Additional 1 ft of Lift (lbs)	2.2
Weight	179 lbs
