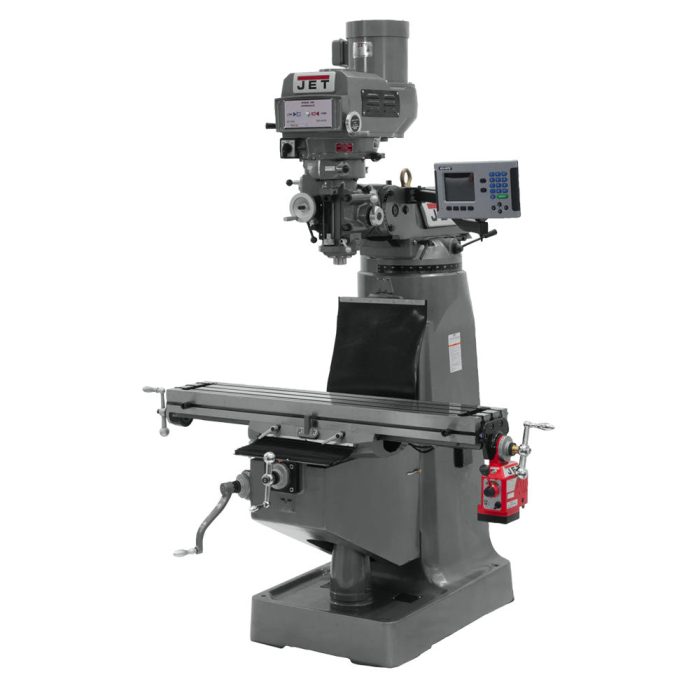

JET 690408 JTM-4VS 230/460V Mill w/ 3-Axis ACU-RITE 203 DRO w/ X-Axis Powerfeed

Original price was: $21,035.82.Current price is: $2,103.58.

Certified Meehanite Castings
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Chrome-plated motor shaft with lower bearing support
The spindle head is internally cooled
Heavy-duty splined motor drive
One-piece quill pinion and shaft
Three-stage power down feed with automatic stop
Heavy-duty spindle brake
Locks on all movable surfaces
Precision hardened and ground ways and table
Adjustable gibs throughout
Internal coolant tank built into casting base for use with a coolant system (coolant pump not included)
Tolerance test sheet included
One-shot lubrication system
Way covers
Drawbar
Toolbox with tools

SKU	690408
Brand	Jet
Volts	230/460
Horsepower	3
Phase	3
Style	Variable Speed R8
Digital Readout	ACU-RITE 203
Number of Axis	3
Spindle Taper (in x TPI)	R-8
Table Size (L x W)	9 x 49 in
Quill Diameter	3-3/8 in
Number of Spindle Speed (RPM)	Variable
Range of Spindle Speed (RPM)	60 – 4,200
Quill Down Feed Rates (IPR)	.0015 – .003 – .006
Spindle Travel	5 in
Head Movement	90 R & L, 45 F & B degree
Max Distance Spindle to Table	17-1/2 in
Distance Spindle to Column (Max)	19 in
Distance Spindle to Column	4-1/2 in
Collet Capacity	1/8 – 7/8
Table Longitudinal Travel	34 in
Table Longitudinal Travel w/ Powerfeed	28-3/4 in
Table Cross Travel	12 in
T-Slots Number and Size	3 and 5/8 in
T-Slot Centers	2-1/2 in
Work Table Weight Capacity	660 lbs
Travel of Knee	14-1/2 in
Travel of Ram	13-3/8 in
Dimensions	66 x 63 x 85 in
Weight	2420
