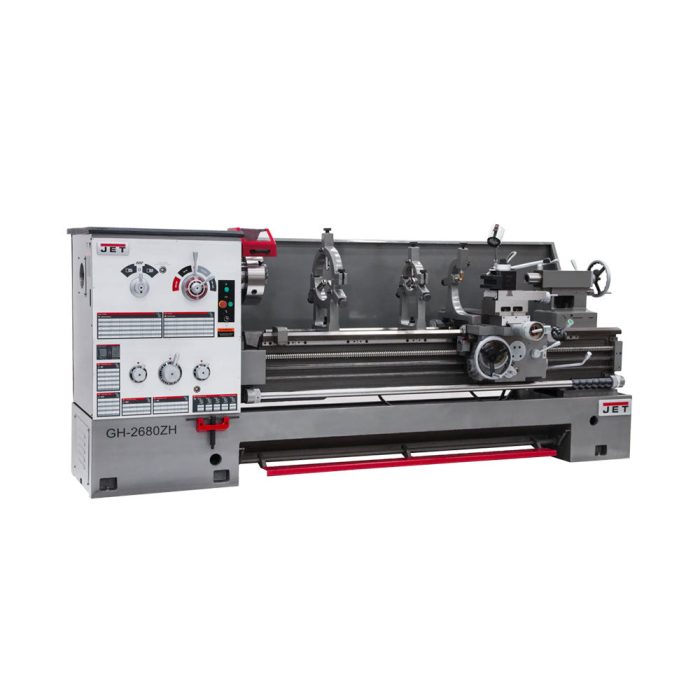

JET GH-2680ZH 230/460V 4-1/8″ Spindle Bore Geared Head Lathe w/ Newall DP700 DRO

Original price was: $68,191.16.Current price is: $6,819.12.

4-1/8″ Spindle Bore
Clutch operated headstock with all headstock gears hardened and ground
Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
Meehanite Castings are used for added durability.
Bed ways are induction hardened and ground for durability.
Full-Length Splash Guard
Heavy-duty tailstock and quill
Rapid power traverse to cross slide and carriage
Siemens Electrics
Standard Equipment:
Drive Plate
12″ 3-Jaw scroll chuck with top reversing jaws
Face Plate
2 Steady Rests with Roller Bearings
Follow Rest
Large capacity steady rest with ball bearing tips
5pc. Quick change tool post set
Micro-carriage bed stop
Fully Integrated Coolant System
LED work lamp
Electronic Chuck Key Holder
Fitted top mats to hold tooling
E-Stop on Carriage for added safety
Large easy to use foot brake

SKU	GH-2680ZH
Brand	Jet
Volts	230/460
Horsepower	10
Phase	3
Size	26 x 80
Digital Readout	Newall DP700
Swing Over Bed	26 in
Swing Over Cross Slide	16-1/2 in
Swing Through Gap	34 in
Length of Gap	8 in
Distance Between Centers	80 in
Spindle Bore	4-1/8 in
Spindle Mount	D1-8
Number of Spindle Speeds	12
Range of Spindle Speeds	36 – 1600 RPM
Spindle Taper with Sleeve	MT-5
Number of Longitudinal and Cross Feed Rates	65
Range of Longitudinal Feeds (IPR)	.0023 – .0937
Range of Cross Feeds (IPR)	.010 – .0404
Number of Inch Threads	48
Range of Inch Threads (TPI)	2-30
Number of Metric Threads	22
Range of Metric Threads	1-14
Max Tool Size	1-1/4 x 1-1/4 in
Compound Slide Travel	5-1/2 in
Cross Slide Travel	12-3/32 in
Carriage Travel	72-1/2 in
Tailstock Spindle Travel	6 in
Taper in Tailstock Spindle	MT-5
Follow Rest of Capacity	25/32 – 3-15/16 in
Steady Rest Capacity	Small 25/32 – 4-29/32, Large 3-15/16 – 9-7/16 in
Width of Bed	16 in
Drive	Geared Head
Style	Engine – Large Spindle Bore
Dimensions (L x W x H)	138 x 43 x 57 in
Weight	8514
