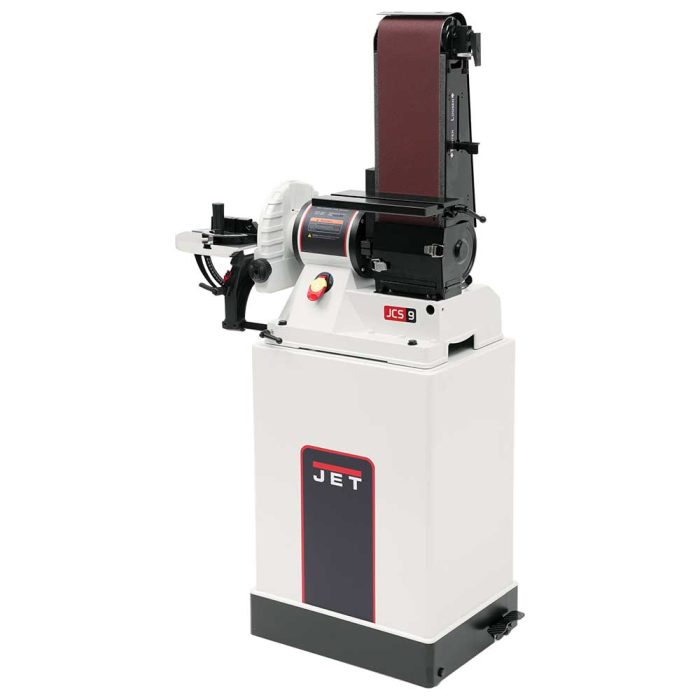

Jet JSG-96CS 3/4HP 1Ph 115V 6″x48″ Belt / 9″ Disc Sander, Closed Stand 708597K

Original price was: $1,413.44.Current price is: $141.34.

Large cast iron table has preset stops at 90aDegree and 45aDegree to let you use the belt sander vertically, horizontally or anywhere in between
Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
Graphite covered steel platen runs cooler increasing machine and belt life
Specially designed belt guard allows full use of the 6 belt width and length
Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
Tracking adjustment knob with quick-lock handle keeps belt on track during use
Quick-release belt tension lever makes belt changes fast and easy
Quick-lock dust cover allows fast disc changes
Single 4 dust port on the back of the base collects dust effectively from both the belt and disc
Powerful 3/4HP motor easily handles the toughest sanding operations
Built-in handles for easier portability
One-piece formed steel heavy-duty closed stand provides additional support and additional storage for abrasives
Integrated locking wheels for easy mobility

JSG-96CS, 6 x 48 Belt / 9 Disc Sander with Closed Stand, 3/4HP 1Ph, 115V 708597K
Owner’s Manual

Style (Type)	Closed Stand
Disc Diameter (In.)	9
Disc Speed (RPM)	1725
Disc Table Tilt (Deg.)	10 Up, 45 Down
Disc Table Size (L x W) (In.)	12 x 7-1/2
Sanding Belt Size (L x W) (In.)	48 x 6
Belt Speed (RPM)	2258
Belt Table Tilt (Deg.)	10 Up, 45 Down
Belt Table Size (L x W) (In.)	11 x 5-1/2
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	3/4
Motor Phase (PH)	1
Motor Voltage (V)	115
Prewired Voltage (V)	115
Motor Amps	11
