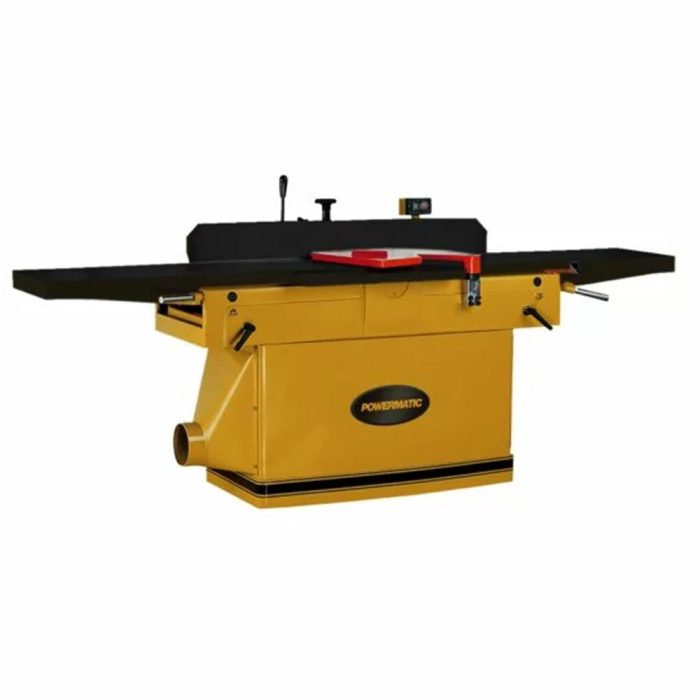

Powermatic PJ1696T 230V 7.5 HP 3 PH 230V Jointer w/ Armorglide

Original price was: $14,984.74.Current price is: $1,498.47.

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
Cast iron fence bevel controls include positive stops at 45 degrees and 90 degrees
Full size rabbeting table supports large workpieces for rabbets up to 3/4-inch deep
Helical cutterhead features 58 two-sided knife inserts that reduce noise, eliminate adjustments, and speed knife changes
Large 16″ x 96″ precision ground cast iron table surface for maximum support and fine finish
Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play

PJ1696T, 16-Inch Parallelogram Jointer with ArmorGlide, Helical Cutterhead, 3Ph 230
Owner’s Manual

SKU	PJ1696T
Brand	Powermatic
Power	Corded
Motor Power (HP)	7-1/2
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Cuts Per Minute	20,800
Cutterhead Diameter (In.)	4
Cutterhead Speed (RPM)	5200.0000
Cutting Capacity (W x D) (In.)	16 x 3/4
Dust Collection Minimum CFM Required (CFM)	800
Dust Port Outside Diameter (In.)	6
Infeed Table Length (In.)	47-1/2
Number of Knives	58
Prop 65	Cancer and Reproductive Harm
Table Height from Floor (In.)	37-1/2
Type of Cutterhead	HELICAL
