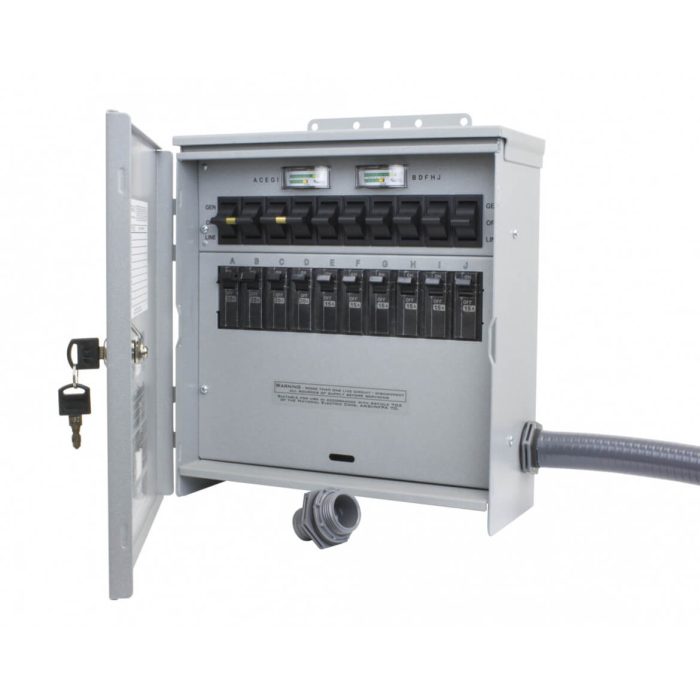

Reliance R310A 120/240-Volt 30-Amp 10-Circuit Pro/Tran Outdoor Transfer Switch
Original price was: $419.00.$83.80Current price is: $83.80.
Features
- Pro/Tran 2 30A 10-Circuit 120/240V Outdoor Manual Transfer Switch
- The next generation of Loadside manual transfer switches
- Non-Defeatable (Break-Before-Make) Double-Throw Switch
- Eliminates dangerous backfeeds and electrical overloads
- 10 Total Circuits (1 Interchangable Style)
- (8) 15A 1-Pole, (1) 20A 2-Pole; Easily re-configured in the field
- Color-Coded Built-In Analog Wattmeters
- Helps you balance and manage generator load
- Factory Installed 30-Amp (L14-30) Power Inlet w/ Flip-Lid
- Easily connect your generator cord on bottom of switch
- NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
- Gasketed design, provides liquid tight protection in all seasons
- Key lockable door prevents tampering and unauthorized use
- 16 Flexible, Non-Metalic Liquid-Tight Conduit (1) w/ Fittings
- (5) Combination 1/2 and 3/4 knockouts for easier installation
- Factory-marked, color-coded wires simplifies installation
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What’s in The Box
- 120/240-Volt 30-Amp 10-Circuit Outdoor Transfer Switch – R310A
- Owner’s Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | R310A |
| Brand | Reliance |
| Voltage | 120/240 |
| Frequency | 60 Hertz |
| Circuits | 8 – 15A/120V 1 – 20A/240V |
| Max. Generator Running Watts | 7,500 |
| Phase | Single |
| Max. Single-Pole Circuits | 10 |
| Max. Double-Pole Circuits | 5 |
| Max. Combined Load at 125 Vac | 60 |
| Max. Combined Load at 250 Vac | 30 |
| Power Inlet | L14-30 |
| Recommended Cord Size (Guage) | 10 |
| Conduit Size (in.0 | 1 |
| Watt Meters | Yes |
| Weight (lbs.) | 25 |
| Cabinet Type | Outdoor |
| Dimensions (HxWxD) (in.) | 13 x 12 x 5 (33.02 x 30.48 x 12.70 cm) |
