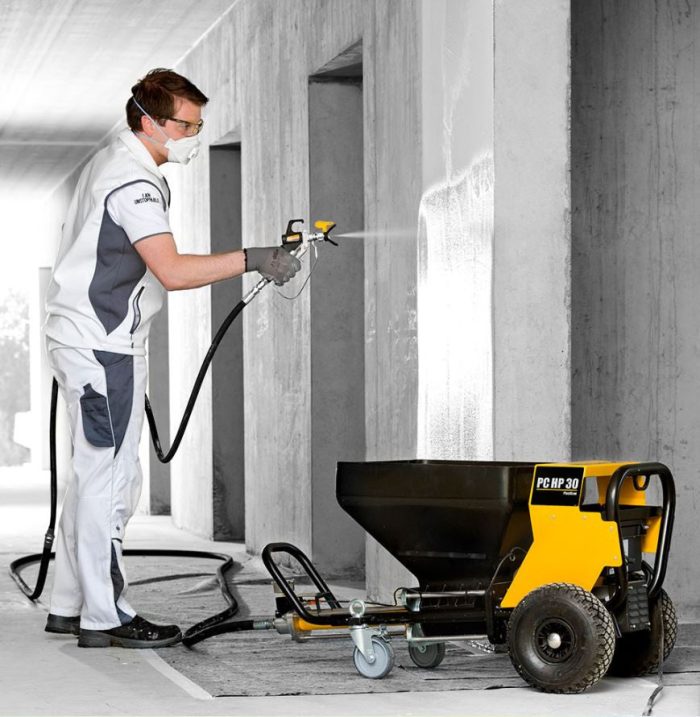

Wagner PlastCoat HP30 – Spray Up To 3mm Grain, Perfect Level 5 Plaster Finishing

Wagner PlastCoat HP30 – Level 5 Plaster Finishing Made Easy

Please Contact Us prior to purchasing this product to ensure we can provide you with current availability and/or offer alternative options available for purchase.

The Wagner Plastcoat HP30 provides a high performance, efficient solution for spraying high viscosity paints and fillers, no matter the size of your job, whether its 500m² or 50,000m².

With simple handling and user friendly operation the HP 30 is a reliable, high performance spray system.

It’s robust high pressure screw pump with airless technology delivers up to 10kg per minute.

Designed for ease of use, the inbuilt cart system – with it’s large pneumatic tyres, make it easily transportable around any worksite.

About PlastCoat Sprayers:

Screw driven machines for aggregate based products such as acrylic based renders, textures, waterproofing, grouting and fireproofing compounds.

The application of organic and mineral materials is really hard work. The material often has to be carried up in buckets over several floors, especially in multi-storey buildings. Dirt and mess on construction sites are inevitable. Wagner texture and render machines makes things much easier. The material is pumped from the ground to heights of up to 30 metres.

The PlastCoat units are suitable for a huge variety of applications, such as thermal insulation, textured plaster and paint, acrylic based renders, smoothing and structuring, waterproofing, concrete repair and much more, and will ensure a uniform coating quality.

When material is applied using PlastCoat units, it is fed from the hose to the spray lance via a spiral/screw pump. When compressed air is injected at the spray lance, the heavy material is atomised to ensure uniform application. Screw pumps use a displacement worm drive mechanism to deliver the material through the rotor and the stator. The equipment is exceptionally durable and low maintenance

Convert To Low Pressure Airless

The Plastcoat HP30 is HEA (High Efficiency Airless) Compatible – The system can be converted to an airless sprayer by simply adding an HEA Spray Kit (Sold separately) allowing spraying at low pressure.

Features:

Highly Portable system with inbuilt Trolley

50 litre Hopper

10M of 19mm Hose

AG-19 Spray Gun

Pressure Gauge

443 Trade Tip 3 and Tip Guard

PlastGuard long-lasting Pump Protector

Specifications:

Max Pressure: 1740 psi

Max Delivery Rate: 10kg/min

Max Delivery Radius: 22.5m

Max Delivery Height: 20m

Max Tip Size: 0.055″

Max Grain Size 0.3mm (fillers)

Voltage: 240V/50 Hz (15 amp power requirement)

Motor Rating: 3HP / 2.3 KW

All Prices Include GST

Buying an airless spray unit is an investment and an expensive one at that, if you have any questions, doubts or just want some no pressure advice please get in touch. Contact Matt
